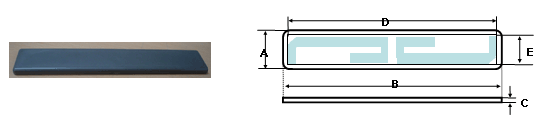

Metal Tag
ITEM Metal Tag
Protocol ISO18000-6B
Read Range 4~5meter

Mechanical Spec
A Tag width 25mm
B Tag length 150mm
C Total thickness 5mm
D Antenna length 137mm
E Antenna width 15mm

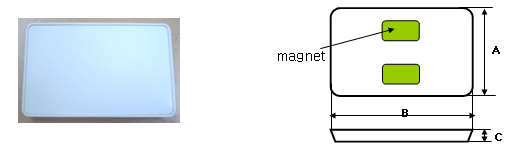

Metal Tag with Magnet
ITEM Metal Tag
Protocol Gen2,
ISO18000-6B
Read Range 3 m ÀÌ»ó

Mechanical Spec
A Tag width 57mm
B Tag length 89mm
C Total thickness 6.5mm


Windshield Tag - Clamshell type




ITEM Windshield Tag
Protocol IS186B, Gen2
Material ABS
Size
56(A) x87(B) x2(C)mm
Read Range 4~5m

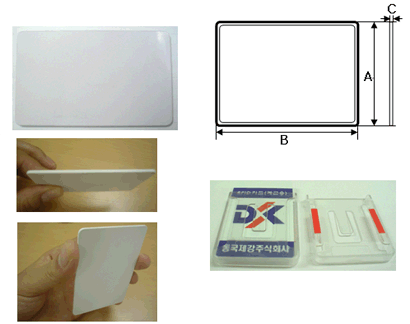

Rewritable Card




ITEM Rewritable Card
Frequency UHF, HF
Protocol UHF: Gen2,
HF: 15693 or 14443A
Material
PET
Recycle 300 ȸ ÀÌ»ó
Read Range 4~5m
